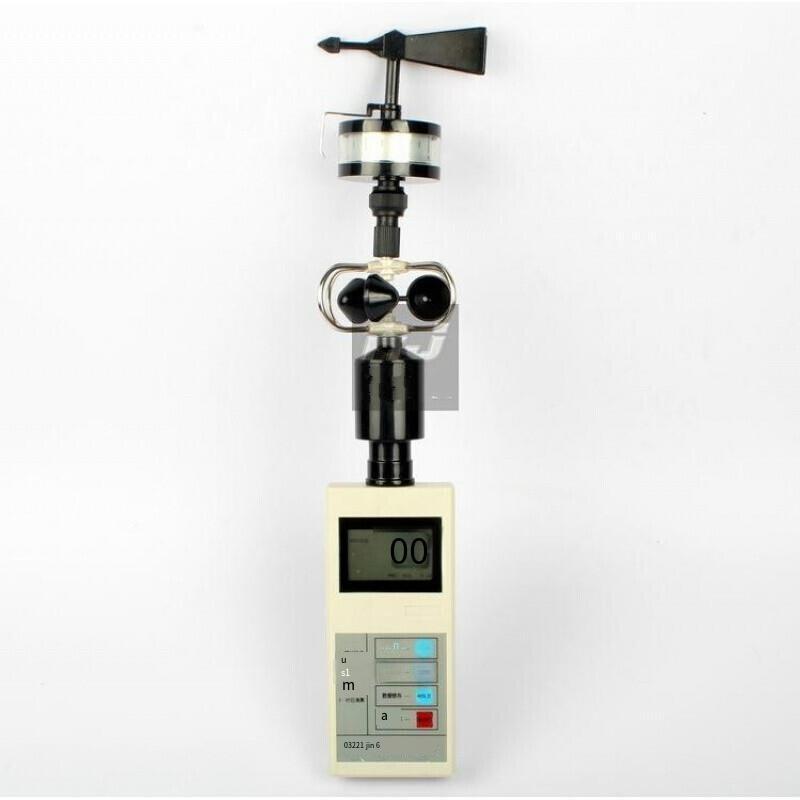

Wind Direction Anemometer Teaching Instrument Light Wind Meter Anemometer Wind Cup Anemometer Wind Vane Wind Level 30 m / S With Wind Direction
- Product SKU: 64625550461
- Order within
Packing List
one.brief introduction
The measuring part of the wind speed in the wind cup anemometer adopts the microcomputer technology，The instantaneous wind speed can be measured at the same time、Instantaneous wind level、Average wind speed、Average wind level、Corresponding wave height 5 Parameters。Many measures have been taken to reduce the function，Greatly reduce the power consumption of the instrument，It has data latch function，Easy to read。The volume of this instrument is small、weight light、Full function、Energy saving，It can be widely used in agriculture and forestry、environment、ocean、Scientific investigation、Measurement of atmospheric wind parameters in meteorological teaching and other fields。
two、 Main technical specifications
1、Wind speed index：
Wind speed measurement range： 0-30 m/s
Starting wind speed of wind speed sensor ：0.8 m/s
Accuracy of wind speed measurement：（0.3+0.03×V）m/s(v Represents the actual wind speed)
Wind speed parameters that can be displayed：Instantaneous wind speed、Average wind speed、Instantaneous wind level、Average wind level、Corresponding wave height
Display resolution： 0.1 m/s （wind speed）
1 level （wind level）
0.1 m （Wave height）
2、 Wind direction index
Wind direction measurement range：0~360 degree 16 Directions
wind Start to sensor wind speed： 1 m/s
wind To measure precision degree：1/2 position
Wind direction to the North：automatic
3、environment index：
work environment temperature degree： -10——+45
work environment wet degree：RH （No condensation）
4、 Power supply
supply voltage ：4.5 V 5#dry battery 3 section（The battery should be provided by itself）
Average current consumption ：5mA（supply voltage 4.5 V Time）
5、 appearance size and weight
appearance size ：400 mm×100mm×100mm
weight：0.5kg
