UNI-T Test Pencil Non-Contact AC Voltage Detectors Pen Tester AC Test Pen 90V~1000V Auto Sense Low Battery Indication Buzzer Vibration UT12A
- Product SKU: UT12A
- Order within
Introduction:

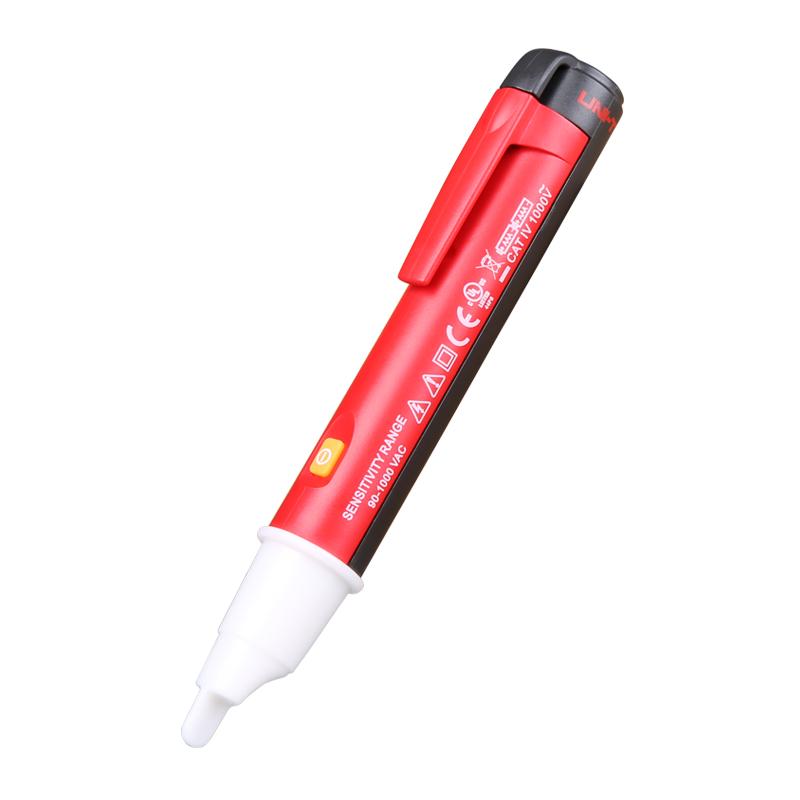

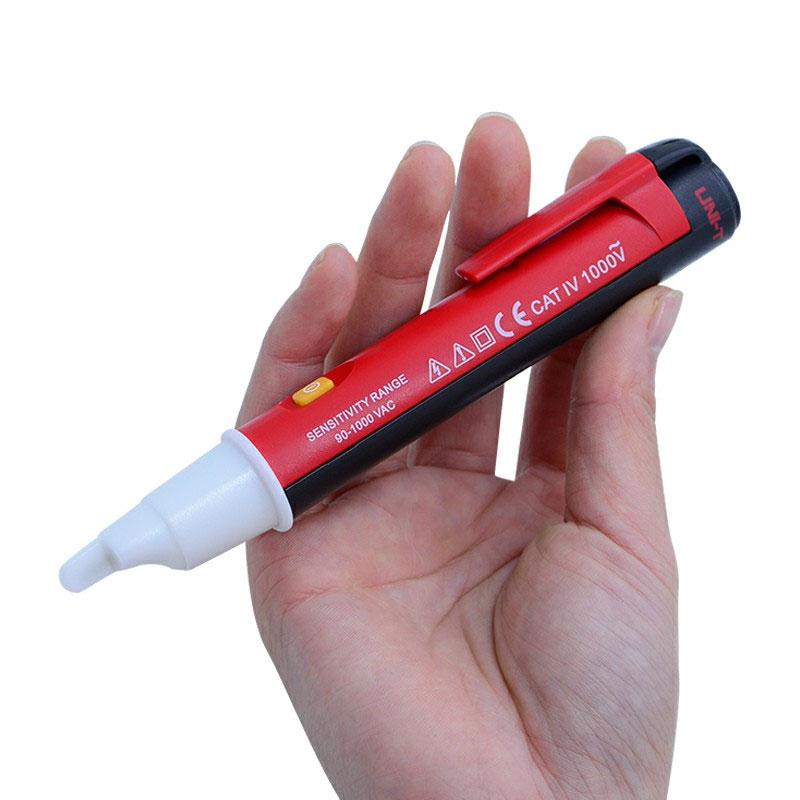

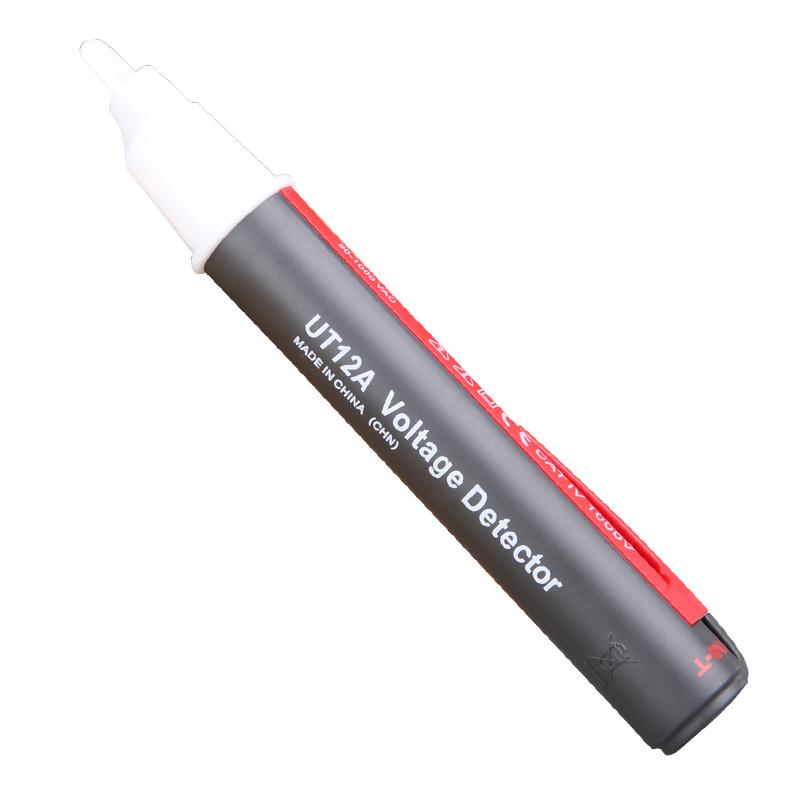

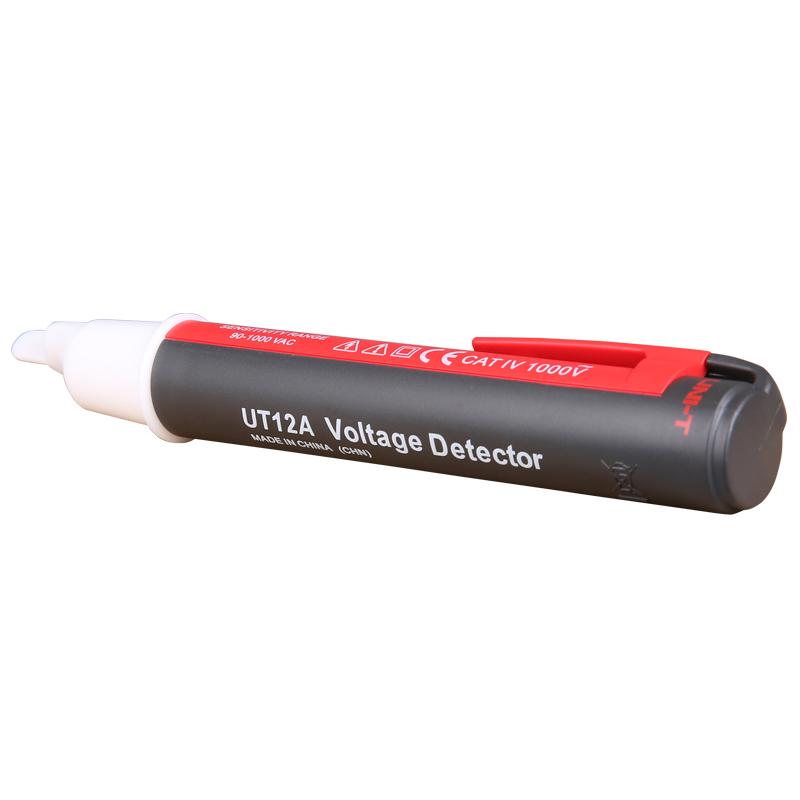

UT12 series is a non-contact AC voltage detector. It is lightweight and convenient to carry due to its pocket size. The device can detect electricity when it is close in range of live adapters, connection terminals, or wires.
Features:
1.Pen-sized: Soft handle for comfortable and easy grips, handy tester for quick and easy to test AC/DC voltage.
2.Easy To Use: Press the "inductive break point test" button, the charged symbol is the phase line, if there is a break point in the live circuit, move the test pen, the point where the charged symbol disappears is the break point.
3.Scope of application: suitable for detecting 12-250V AC and DC current and simply detecting 0 line, phase line and break point of ac current, as well as non-live conductor and on-off.
4.Note: Simple operation, safe and reliable to use.
5.Special attention: Measuring AC voltage can not exceed 250V.

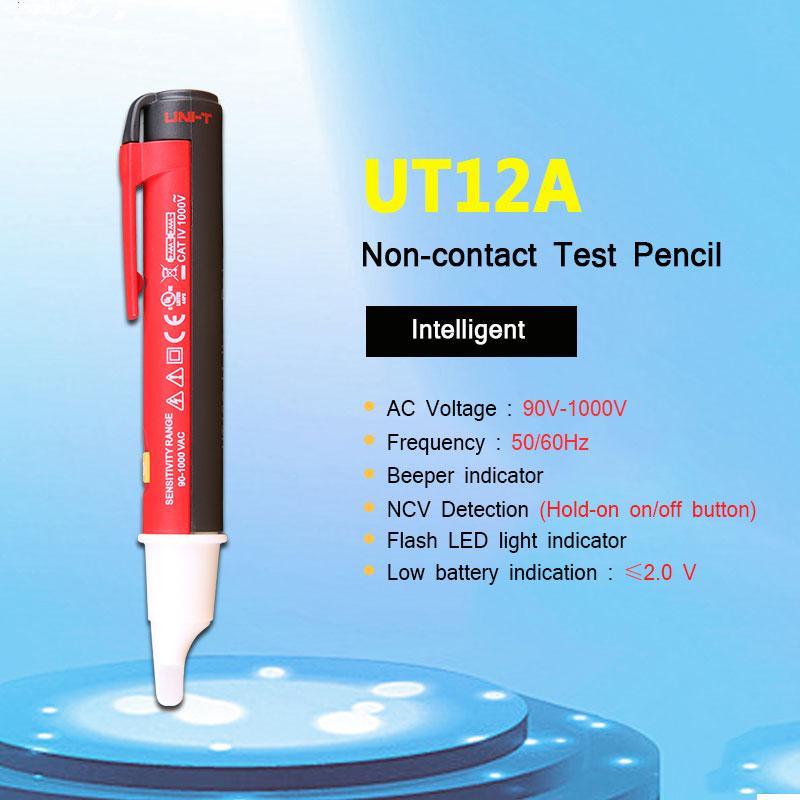

Specifications:
Model: UT12A
AC voltage: 90V~1000V
Frequency: 50Hz/60Hz
Buzzer: √
Low battery indication: ≤2V
Operation: Manual
Power: 1.5V battery (R03) x 2
Product color: Red and grey
Product net weight: 50g
Product size: 150mm x 20mm
Standard quantity per carton: 40pcs
Standard carton measurement: 355mm x 240mm x 335mm
Standard carton gross weight: 3.74kg
