PEAKMETER Digital Clamp Meter 2000 Counts Multimeter AC/DC Voltage Current Resistance Continuity Measurement Tester

Available:In Stock
  • Product SKU: PM2018A
LE 1,179.00
  • Order within

Introduction:

  • Want to own one professional clamp meter to test AC/DC voltage & AC current? You should try this pocket clamp meter.
  • This LCD digital clamp multimeter is a portable and professional clamp meter for testing AC/DC voltage & AC current, resistance, capacitance, etc.
  • It is widely used for field, laboratory, shop, and home applications.

Features:

1.Multi-purpose clamp meter: accurate AC/DC voltage, AC current, resistance, capacitance, temperature, and continuity test with backlight.
2.Manual select measurement function and range. Data hold function, low voltage indications.
3.Easy to use and read mini pocket size, and portable.
4.The maximum allowable voltage between the measuring terminal and the earth: 600V DC or 600V AC.
5.With a resolution of 1mA AC current, the maximum 600A AC current range allows the instrument to meet the needs of different applications.
6.Maximum display value: 6000 counts, widely used in your life. Suitable for electrical equipment testing and maintenance.
7.The Low Pass Filtering Function (LPF) filters out high-frequency interference during the measurement of AC signals, increasing the accuracy of the measurement signal.
8.Continuity test & Overload Protection: Designed to safely and accurately confirm the circuit conducts electricity with overload protection & short-circuit protection. Shows "OL" on the LCD If overload.
9.Energy-saving design, low energy-consuming and powered by 2*1.5V AAA battery (Not included).
10.Auto power off mode for saving power.


Specifications:

Material: ABS
Model: PM2018A
Work height: maximum 2000m
Display: LCD
Maximum display value: 6000 digits
Over range indication: “OL” or “-OL”
Sampling time: about 3 times/s
Automatic power-off time: 10 minutes
Power supply: 1.5V AAA battery x 2 (Not included)
Temperature coefficient: <0.1x accuracy degree/℃
Working temperature: 18℃-28℃
Storage temperature: -10℃-50℃
Maximum input current: 600A AC current
Frequency range: 50/60Hz
Maximum input voltage: 600V DC
Overload protection: 600V DC or AC
Resistance: 0-60K Ω
Continuity: <30Ω

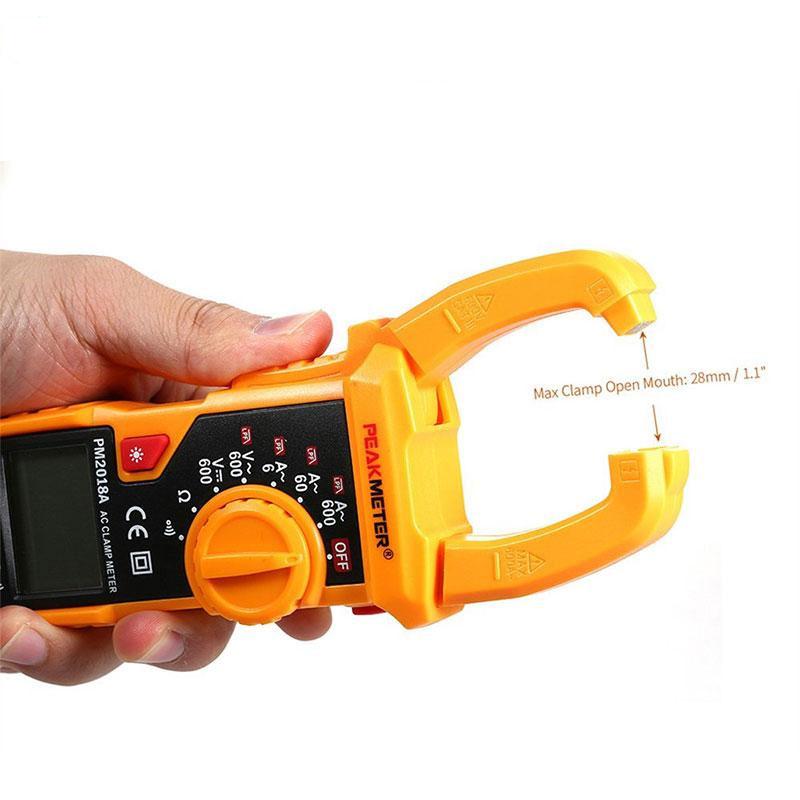

Clamp size: ∅35mm

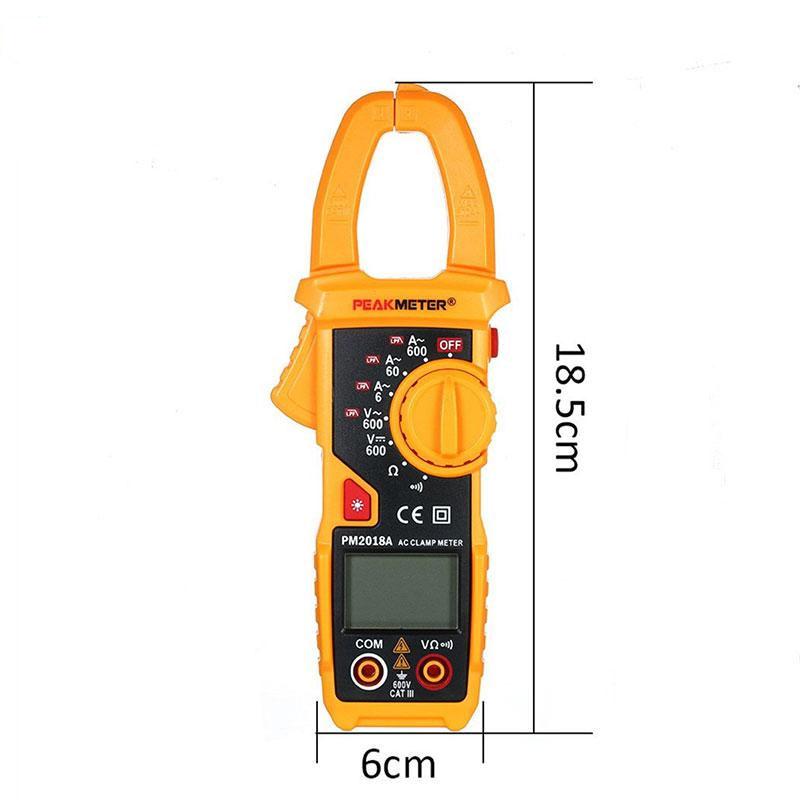

Size: 189*70*39mm
Weight: 180g
Package size: 20*11.5*4.5cm/7.87*4.52*1.77in
Package Weight: 353g



Note:

Item color may show slight aberration due to different shooting lights and monitor displays.
