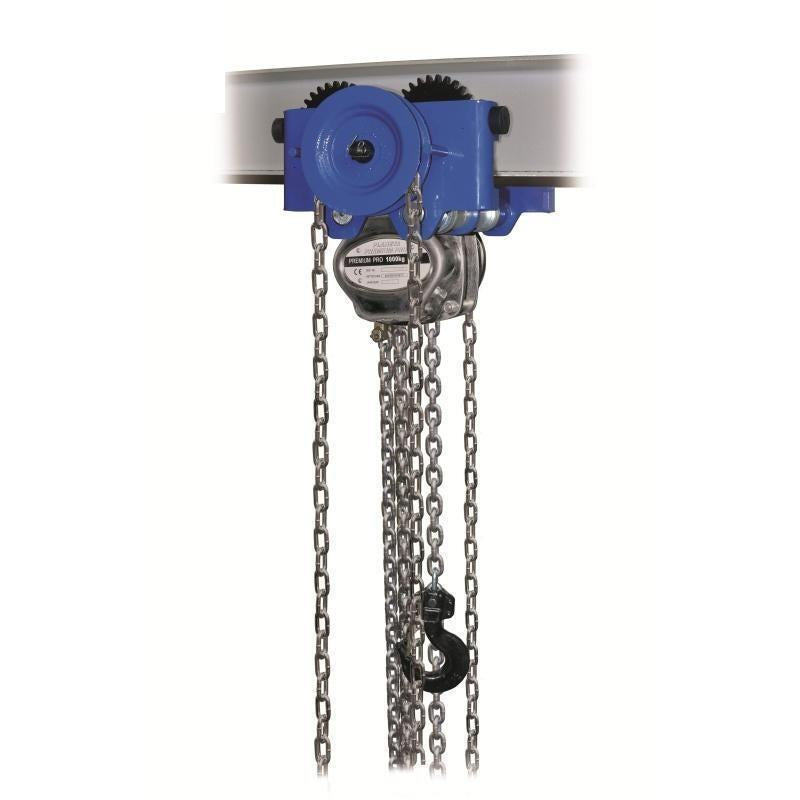

High Quality Chain Block And Hanging Trolley Integrated Set Optimized Space Utilization
![High Quality Chain Block And Hanging Trolley Integrated Set Optimized Space Utilization]()
![High Quality Chain Block And Hanging Trolley Integrated Set Optimized Space Utilization]()
Latest Products
High Quality Chain Block And Hanging Trolley Integrated Set Optimized Space Utilization
Available:In Stock
- Product SKU: 100020281510
LE 107,517.00
- Order within
Ships FREE Handling Day: 1-3 Days, Arriving Day: 15-35 Days[SHORTDESCRIPTION]
Packing List
Chain Block And Hanging Trolley Integrated Set *1
Product features:
It is composed of high-quality manual chain hoist and suspension crane, with compact structure and optimized space utilization rate
The ball bearing makes the car walk smoothly, and the contour design of the wheel maximizes the close contact with the trackProduct information
| mode l | Zipper travel per meter(m) | Hand pull at full load(N) | Minimum turning radius(mm) | Rated load(T) | Flange thickness(mm) | Standard lifting height(m) | Hook opening(mm) | Number of chains | Chain diameter(mm) | Applicable width of I-beam(mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LHT-G-020L-3M | 9.86 | 340 | 1100 | 2 | 16.3 | 3 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-4M | 9.86 | 340 | 1100 | 2 | 16.3 | 4 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-5M | 9.86 | 340 | 1100 | 2 | 16.3 | 5 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-6M | 9.86 | 340 | 1100 | 2 | 16.3 | 6 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-7M | 9.86 | 340 | 1100 | 2 | 16.3 | 7 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-8M | 9.86 | 340 | 1100 | 2 | 16.3 | 8 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-9M | 9.86 | 340 | 1100 | 2 | 16.3 | 9 | 35 | 1 | 8 | 88-203 |
Ships FREE Handling Day: 1-3 Days, Arriving Day: 15-35 Days[SHORTDESCRIPTION]
Packing List
Chain Block And Hanging Trolley Integrated Set *1
Product features:
It is composed of high-quality manual chain hoist and suspension crane, with compact structure and optimized space utilization rate
The ball bearing makes the car walk smoothly, and the contour design of the wheel maximizes the close contact with the trackProduct information
| mode l | Zipper travel per meter(m) | Hand pull at full load(N) | Minimum turning radius(mm) | Rated load(T) | Flange thickness(mm) | Standard lifting height(m) | Hook opening(mm) | Number of chains | Chain diameter(mm) | Applicable width of I-beam(mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LHT-G-020L-3M | 9.86 | 340 | 1100 | 2 | 16.3 | 3 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-4M | 9.86 | 340 | 1100 | 2 | 16.3 | 4 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-5M | 9.86 | 340 | 1100 | 2 | 16.3 | 5 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-6M | 9.86 | 340 | 1100 | 2 | 16.3 | 6 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-7M | 9.86 | 340 | 1100 | 2 | 16.3 | 7 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-8M | 9.86 | 340 | 1100 | 2 | 16.3 | 8 | 35 | 1 | 8 | 88-203 | |
| LHT-G-020L-9M | 9.86 | 340 | 1100 | 2 | 16.3 | 9 | 35 | 1 | 8 | 88-203 |
