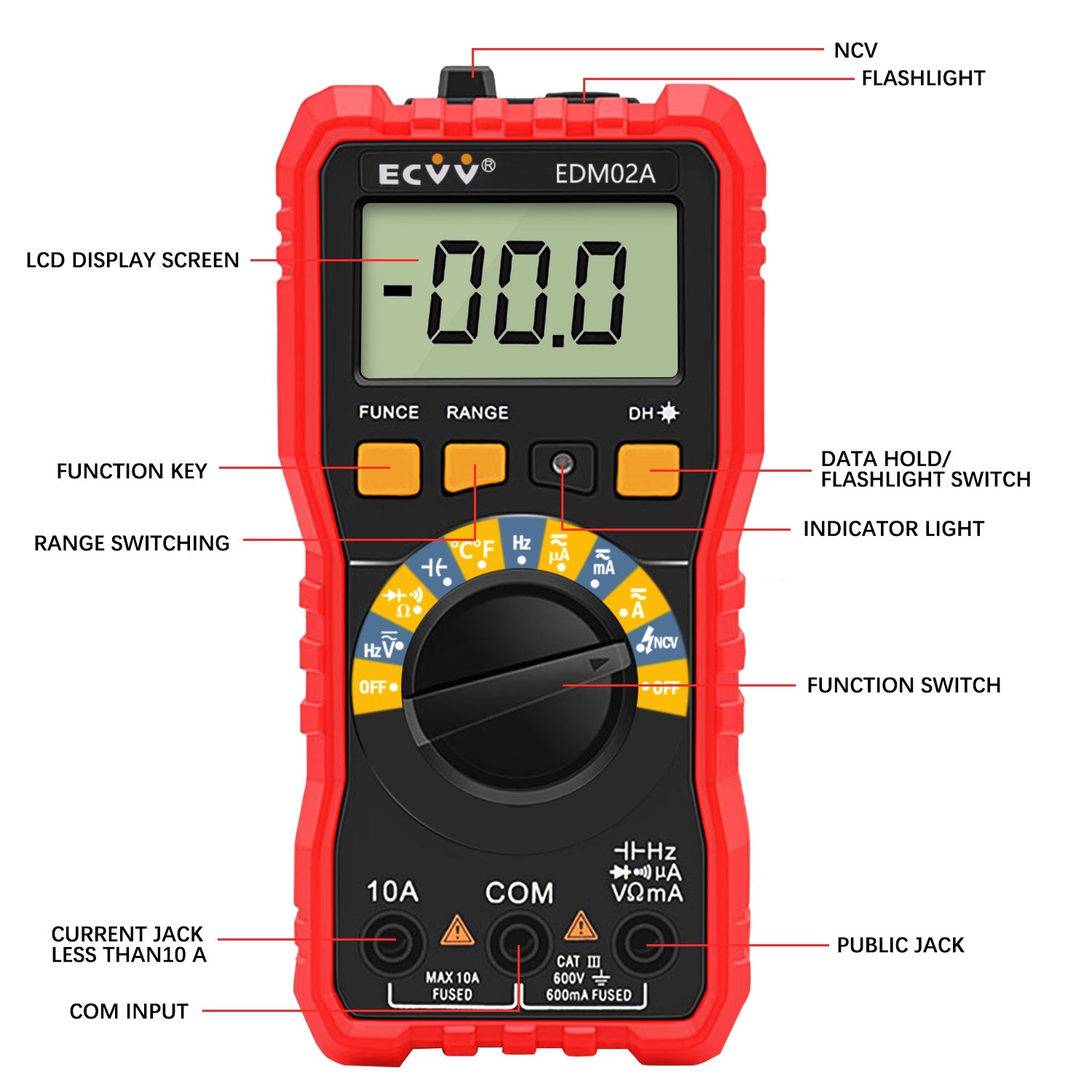

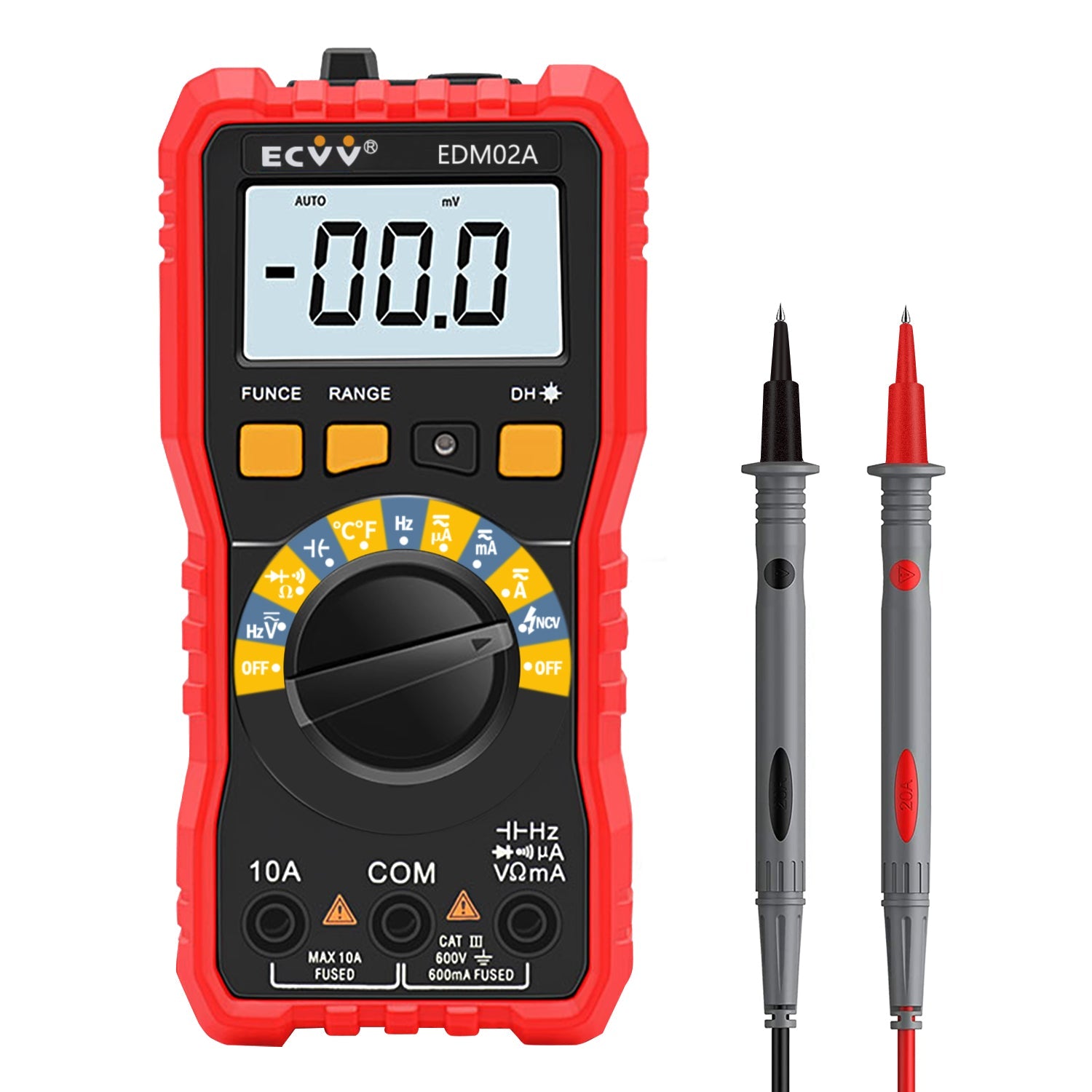

ECVV NCV Auto Ranging Digital Multimeter True RMS 10A Current 600V Voltmeter Multi Tester with Backlit LCD Home Measuring Tools
- Product SKU: EDM02A
- Order within
FEATURES:
[Multi-functions Instrumentation] Measure ac/dc voltage, ac/dc millivolt voltage, resistance, continuity, diode, capacitance, frequency/duty ratio, ac/dc current, noncontact voltage detection.Temperature probe included for temp measurement.
[Sensitive, Precise and fast readings] Automatic/manual range is available;Up to 600V voltage range.Quickly detect line continuity. True RMS in measurement;Excellent PCB circuit design,Data hold function is easier to read the measurement result.
[Safety Operation] CAT III 600V, CE and RoHS certified. Anti-Burn with double fuses. Short circuit beep. Overload protection on all ranges. Non-Contact Voltage detection (NCV).Audible and visible alarm. Input protection,Provide warning especially when measuring high voltage/current.
[Backlit LCD Display] Auto Polarity Display, Easy to Read Large Backlit LCD Display on 1999 counts, Back-light and flashlight is helpful for reading value in dark surrounding.

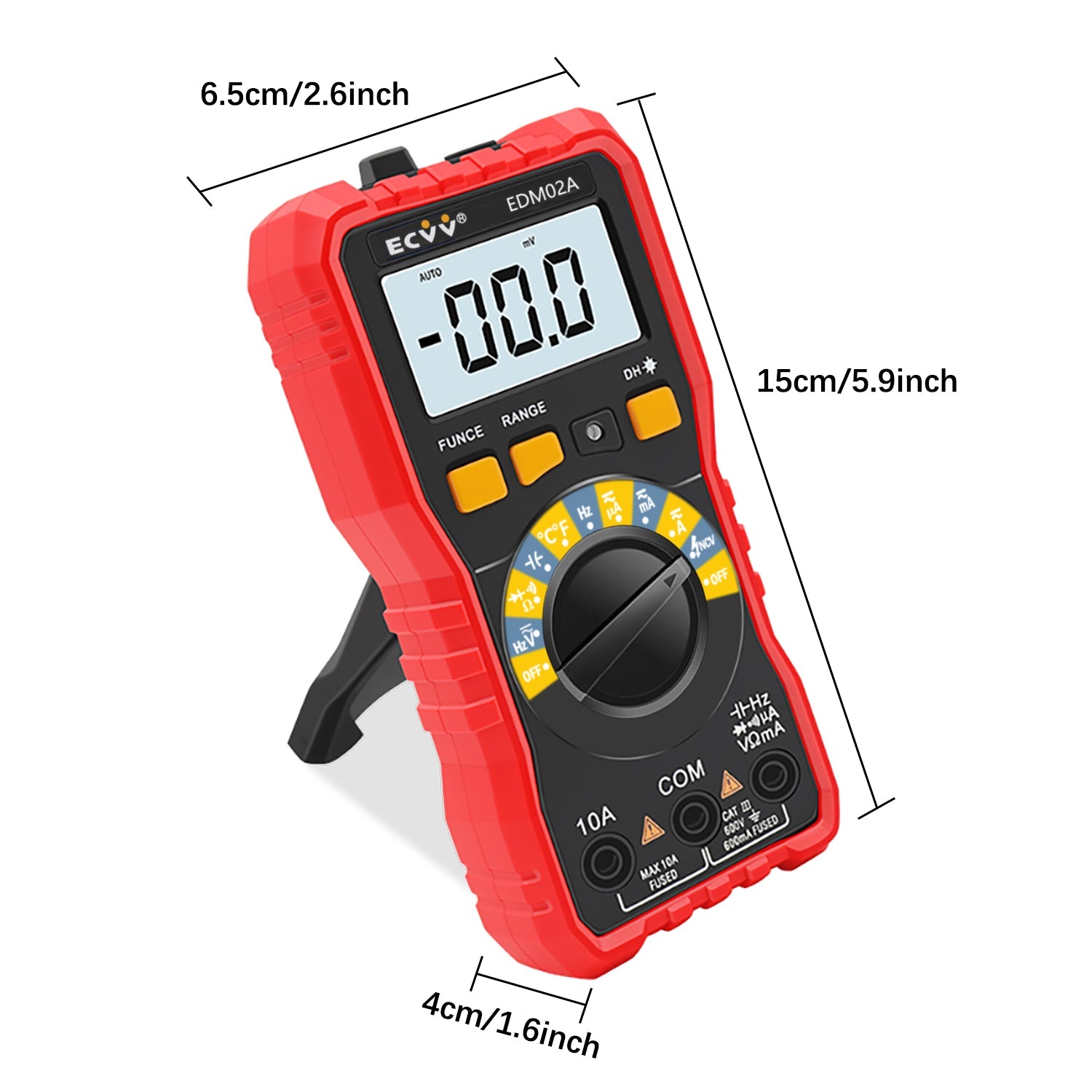

[Durable and Long Service] Protective rubber sleeve around the multimeter adds extra 2m drop protection.Automatic shutdown make the tester long service life. Hands Free Stand Places the Device at a 45 Degree Angle.
PARAMETERS:
| DC Voltage | 200m/2/20/200/600V ±(0.5%+5) |
| AC Voltage |
2/20/200/600V ±(1.2%+5) |
| DC Current |
200u/2000u/20m/200m/2/10A ±(1%+5) |
| AC Current | 200u/2000w20m/200m/2/10A ±(1.2%+5) |
| Resistance | 200/2k/20k/200k/20MΩ ±(0.8%+5) |
| Capacitance | 20n/200n/2u/20u//200u/2000uF ±(3%+10) |
| Frequency | 200/2k/20k/200k/2M/20MHz ±(0.5%+5) |

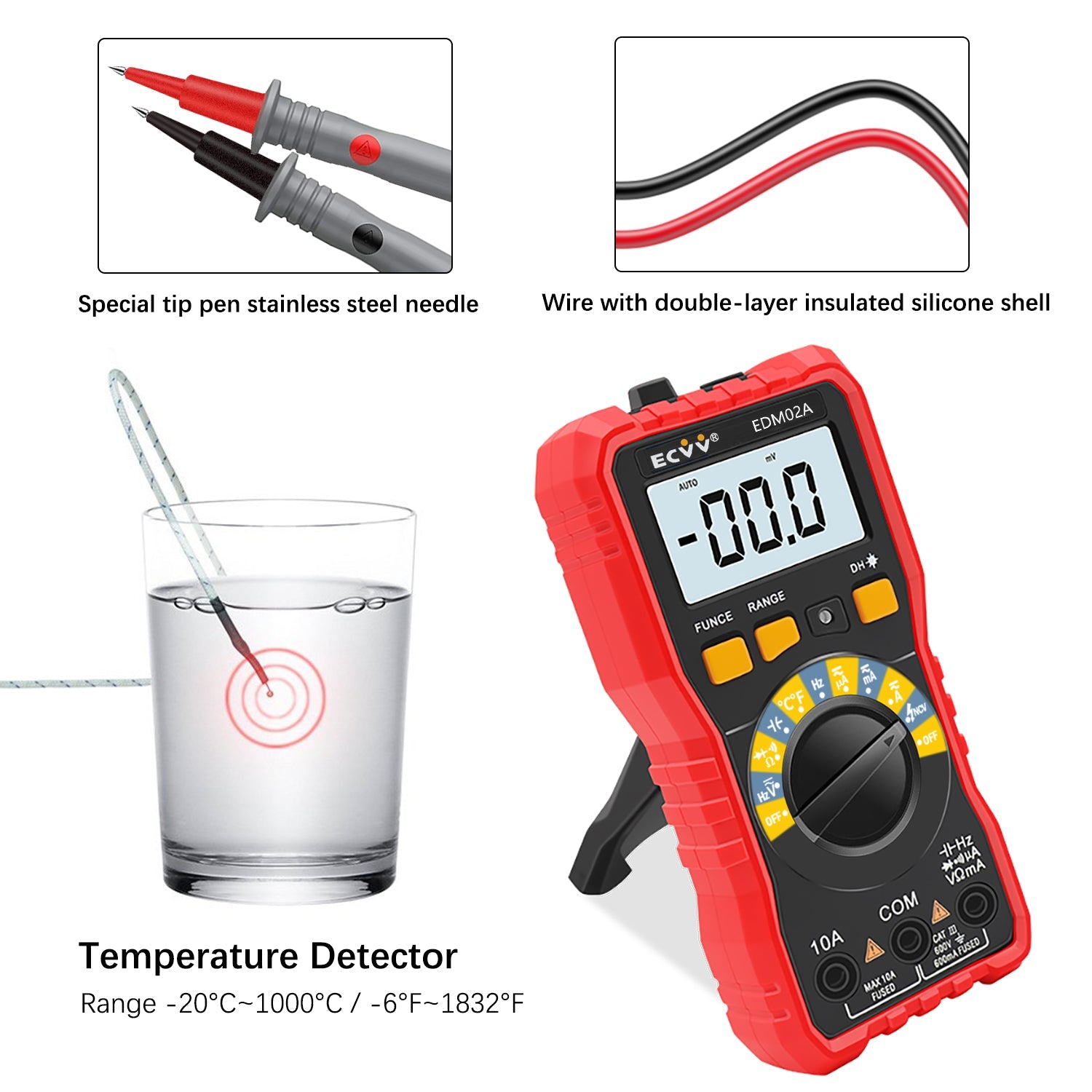

| Temperature | -20°C~1000°C ±(1. 2%+4) & -6°F~1832°F ±(1.2%+6) |
| Special Function: | |
| Auto Range | √ |
| Manual Range | √ |

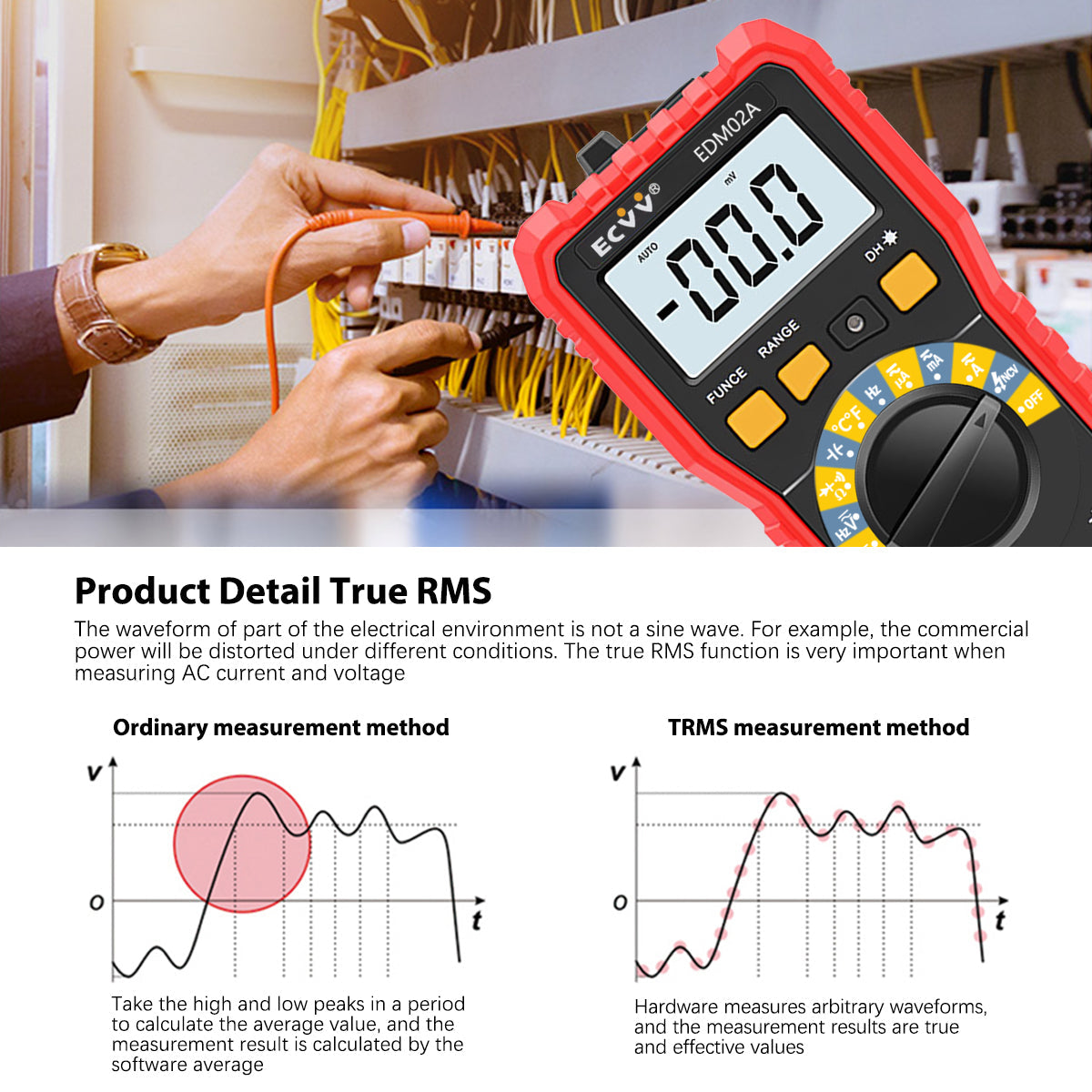

| True RMS | √ |
| Short Circuit Buzzer | √ |
| NCV | √ |
| True RMS | √ |
| Voltage Frequency Measurement | √ |
| Input Protection | √ |
| Auto Power off | √ |
| Low Battery Indication | √ |
| Backlight | √ |
| Flashlight | √ |
| Data Hold | √ |
| Maximum Display | 1999 |
FEATURES:
[Multi-functions Instrumentation] Measure ac/dc voltage, ac/dc millivolt voltage, resistance, continuity, diode, capacitance, frequency/duty ratio, ac/dc current, noncontact voltage detection.Temperature probe included for temp measurement.
[Sensitive, Precise and fast readings] Automatic/manual range is available;Up to 600V voltage range.Quickly detect line continuity. True RMS in measurement;Excellent PCB circuit design,Data hold function is easier to read the measurement result.
[Safety Operation] CAT III 600V, CE and RoHS certified. Anti-Burn with double fuses. Short circuit beep. Overload protection on all ranges. Non-Contact Voltage detection (NCV).Audible and visible alarm. Input protection,Provide warning especially when measuring high voltage/current.
[Backlit LCD Display] Auto Polarity Display, Easy to Read Large Backlit LCD Display on 1999 counts, Back-light and flashlight is helpful for reading value in dark surrounding.
[Durable and Long Service] Protective rubber sleeve around the multimeter adds extra 2m drop protection.Automatic shutdown make the tester long service life. Hands Free Stand Places the Device at a 45 Degree Angle.
PARAMETERS:
| DC Voltage | 200m/2/20/200/600V ±(0.5%+5) |
| AC Voltage |
2/20/200/600V ±(1.2%+5) |
| DC Current |
200u/2000u/20m/200m/2/10A ±(1%+5) |
| AC Current | 200u/2000w20m/200m/2/10A ±(1.2%+5) |
| Resistance | 200/2k/20k/200k/20MΩ ±(0.8%+5) |
| Capacitance | 20n/200n/2u/20u//200u/2000uF ±(3%+10) |
| Frequency | 200/2k/20k/200k/2M/20MHz ±(0.5%+5) |
| Temperature | -20°C~1000°C ±(1. 2%+4) & -6°F~1832°F ±(1.2%+6) |
| Special Function: | |
| Auto Range | √ |
| Manual Range | √ |
| True RMS | √ |
| Short Circuit Buzzer | √ |
| NCV | √ |
| True RMS | √ |
| Voltage Frequency Measurement | √ |
| Input Protection | √ |
| Auto Power off | √ |
| Low Battery Indication | √ |
| Backlight | √ |
| Flashlight | √ |
| Data Hold | √ |
| Maximum Display | 1999 |
