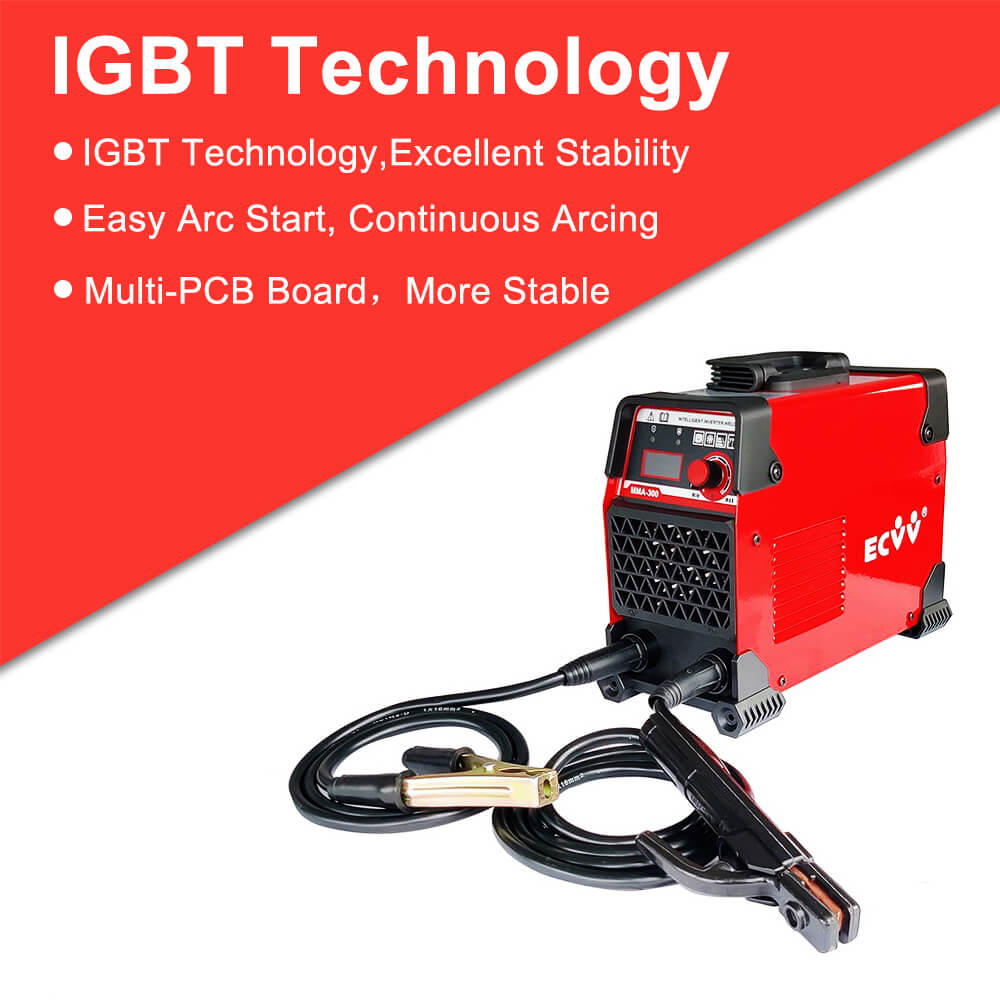

ECVV MMA-300 ARC Welder 300Amp 220V Stick MMA Welding Machine IGBT Inverter Welder Portable

Available:In Stock
  • Product SKU: MMA300
LE 3,089.00
  • Order within

Our machine adopt  high-quality, high-quantity components in order to produce a high-quality product, like Multi-PCB board design,IGBT technology. Our parameters are all true, unlike other products in the market. And it is small, light, compact and portable compared to large bulky conventional welding machines. It is suitable for welding carbon steel,,stainless steel and other metals,can achieve the perfect weld.

[Produce Smooth and Beautiful Seam Easily] Easy arc start, stable current, no sticking, MCU chip(Micro Control Unit) modular design, which all help operator to produce smooth and beautiful seam easily. With MCU chip modular design, customers only need to adjust the output current. The operation is simple.

[IGBT TECHNOLOGY] The machine uses a high performance IGBT technology. IGBT transistor belongs to the latest fourth-generation inverter technology which has a  good heat dissipation ability and stable output current waveform. With this, it is easy to weld smooth weld seam.

[Multi-PCB Board Technology] Using Multi-PCB board, modularization, improve the stability of the welding machine, and the heat dissipation is very good. the more PCB boards, the greater the cost. It is easy to repair if it is faulty, only the damaged single board needs to be replaced. The electric welding machines on the market which are relatively poor, they  will use single-board technology  in order to save costs.

[Other Advantages] High-quality chips, Pure copper coil transformer, Large capacitors, Cooling Fan System. And the power cord adopts copper core, thick wire, which can withstand large current output, and will not burn the machine.

[Buy With Confidence] ECVV offers good after-sales service. If the machine can not work or have other problem when working, please contact us at the first time.We have store in UAE.

SPECIFICATIONS:

Brand

ECVV

Model

MMA-300

Input Power Voltage

AC220V±15%, 50/60Hz

No-load Voltage (V)

59V

Output current regulation (A)

20-300A

Rate Output Voltage(V)

32V

Duty Cycle (%)(25℃)

60%

Efficiency (%)

85%

No-Load Loss(w)

40w

Power Factor (COSɸ)

0.93

Insulation Class

F

Net Weight (Kg)

3.2kg

Product Dimensions (MM)

320*125*220mm

Electrode Diameter (MM)

1.6-4MM

Housing IP Grade

IP21 S

Shell Material

Iron

Weldable Thickness

0-10mm



Our machine adopt  high-quality, high-quantity components in order to produce a high-quality product, like Multi-PCB board design,IGBT technology. Our parameters are all true, unlike other products in the market. And it is small, light, compact and portable compared to large bulky conventional welding machines. It is suitable for welding carbon steel,,stainless steel and other metals,can achieve the perfect weld.

[Produce Smooth and Beautiful Seam Easily] Easy arc start, stable current, no sticking, MCU chip(Micro Control Unit) modular design, which all help operator to produce smooth and beautiful seam easily. With MCU chip modular design, customers only need to adjust the output current. The operation is simple.

[IGBT TECHNOLOGY] The machine uses a high performance IGBT technology. IGBT transistor belongs to the latest fourth-generation inverter technology which has a  good heat dissipation ability and stable output current waveform. With this, it is easy to weld smooth weld seam.

[Multi-PCB Board Technology] Using Multi-PCB board, modularization, improve the stability of the welding machine, and the heat dissipation is very good. the more PCB boards, the greater the cost. It is easy to repair if it is faulty, only the damaged single board needs to be replaced. The electric welding machines on the market which are relatively poor, they  will use single-board technology  in order to save costs.

[Other Advantages] High-quality chips, Pure copper coil transformer, Large capacitors, Cooling Fan System. And the power cord adopts copper core, thick wire, which can withstand large current output, and will not burn the machine.

[Buy With Confidence] ECVV offers good after-sales service. If the machine can not work or have other problem when working, please contact us at the first time.We have store in UAE.

SPECIFICATIONS:

Brand

ECVV

Model

MMA-300

Input Power Voltage

AC220V±15%, 50/60Hz

No-load Voltage (V)

59V

Output current regulation (A)

20-300A

Rate Output Voltage(V)

32V

Duty Cycle (%)(25℃)

60%

Efficiency (%)

85%

No-Load Loss(w)

40w

Power Factor (COSɸ)

0.93

Insulation Class

F

Net Weight (Kg)

3.2kg

Product Dimensions (MM)

320*125*220mm

Electrode Diameter (MM)

1.6-4MM

Housing IP Grade

IP21 S

Shell Material

Iron

Weldable Thickness

0-10mm
