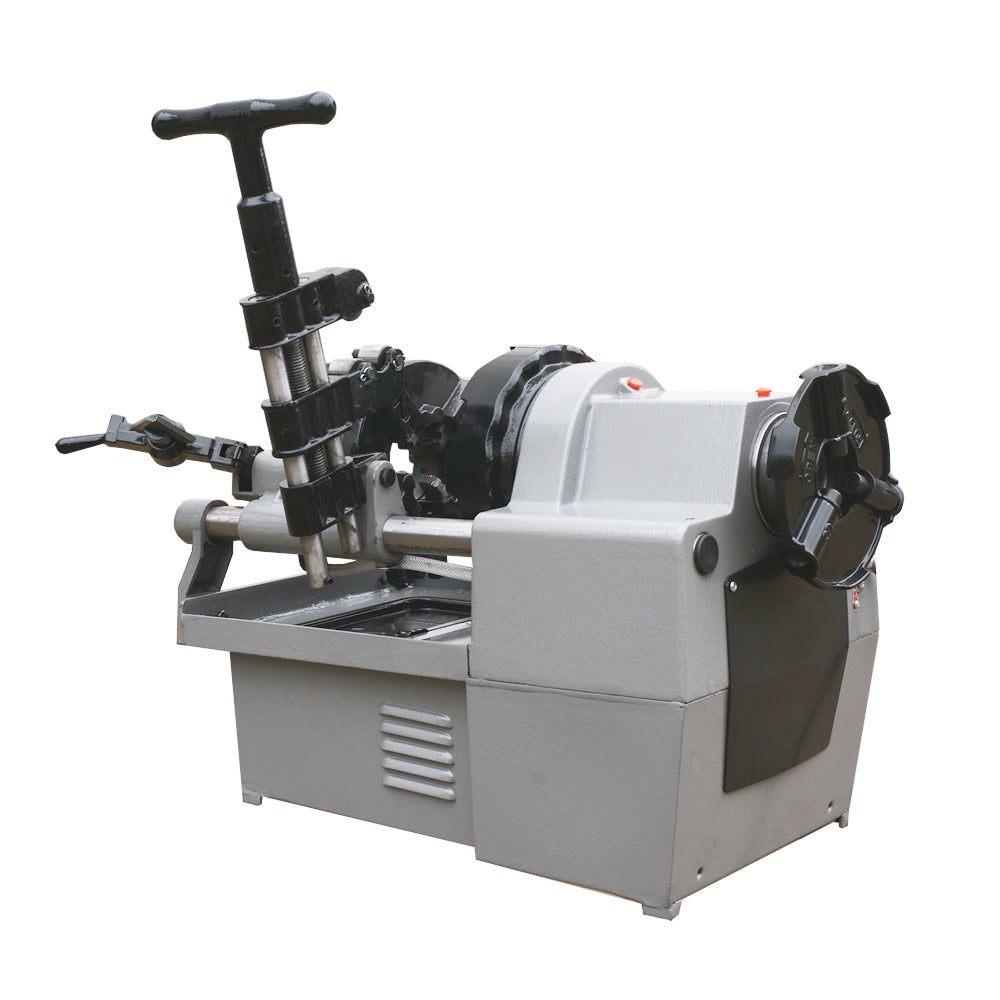

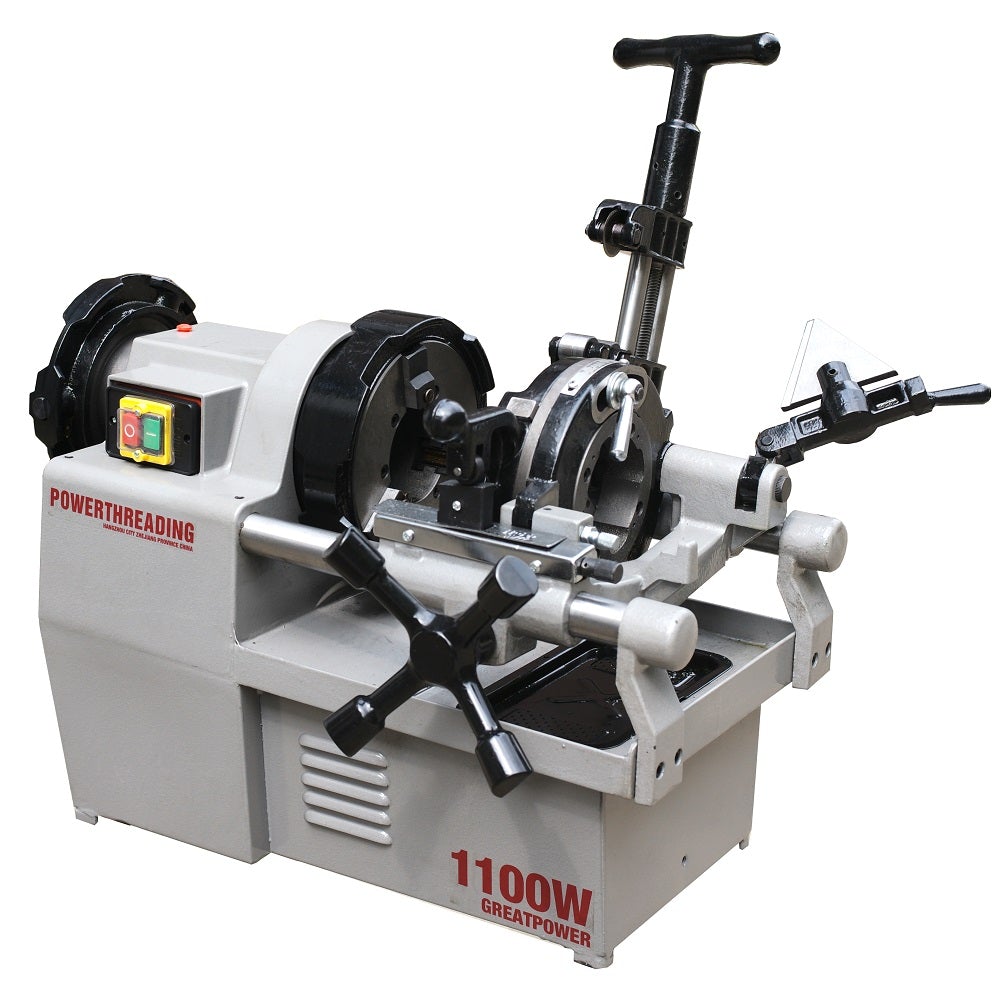

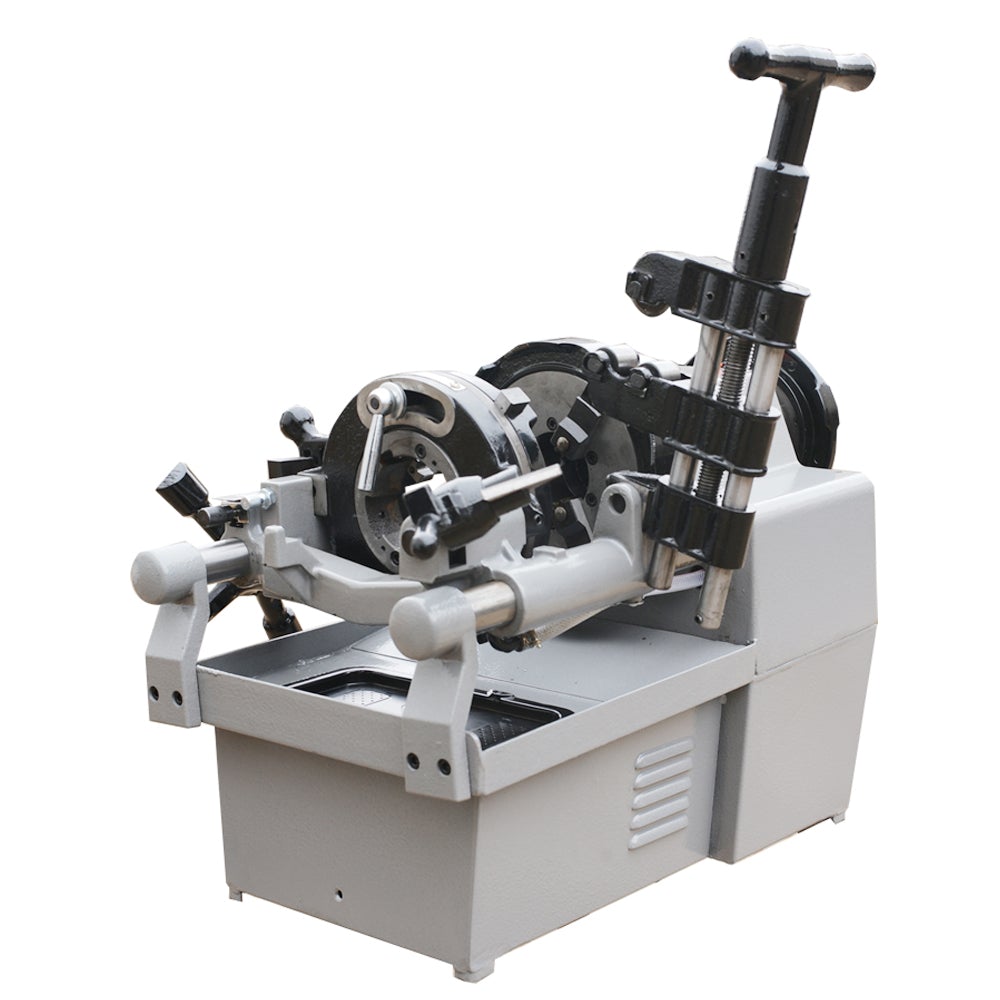

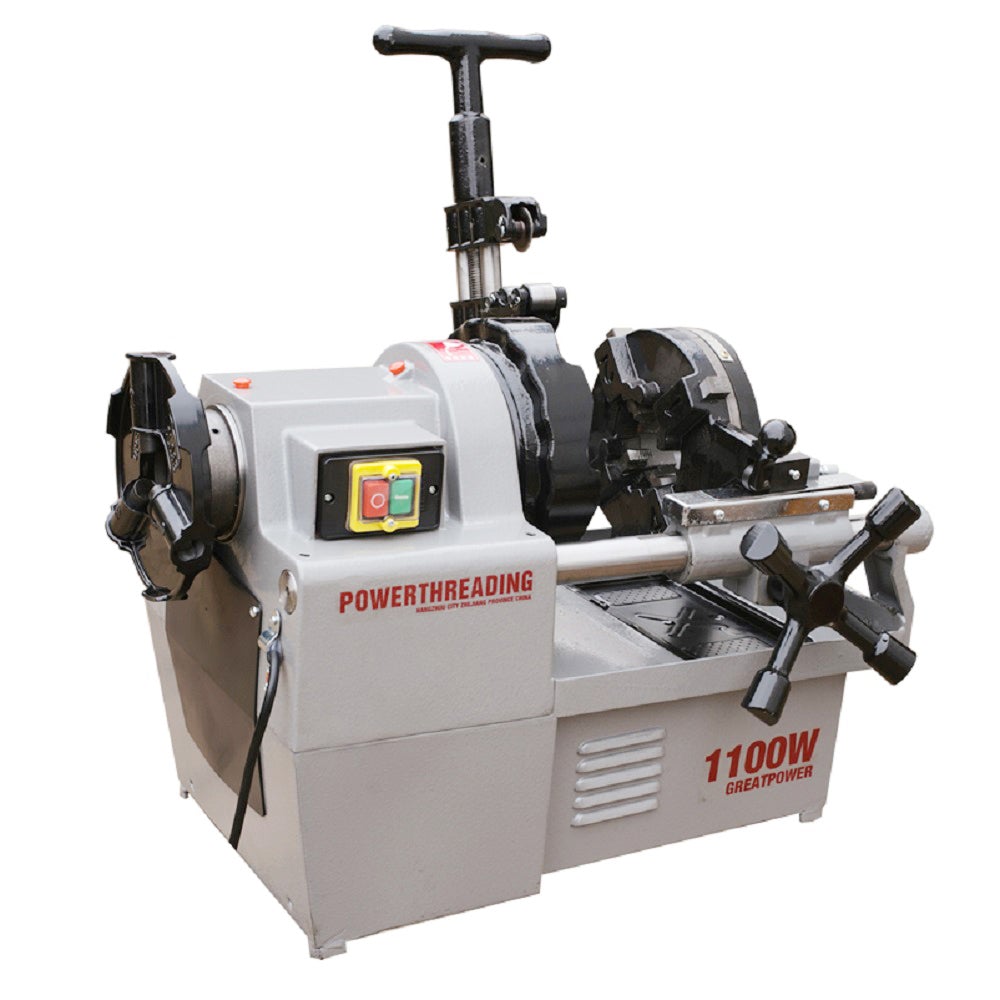

ECVV Automatic High Efficiency Bolt and Pipe Threading Machine 1/2" to 2" BSPT Threader Deburrer Cutter 1100W Pipe Threader TSB50F
- Product SKU: ETSB50F
- Order within
Description：
ECVV pipe threading machine is the perfect machine for pipeline construction, workshop product, service trucks and in-house maintenance, or any application where portability and versatility are needed.
This threading machine offers fast and steady, precision threading, cutting, de-burring, and grooving. The powerful 750-watt (1.5 HP) motor provides strong turning power with consistent torque for swift, effortless production of accurate, standard pope and bolt threads. The Detachable legs workbench makes transport easy, whether on site or in the workshop.
Features:
1. Automatic oiling system produce reliable high quality threads.
2. Self-Priming constant flow gerotor with through the die head oiling.
3. Copper induction motor helps minimize noise, long service life.
4. This threading machine is high-performance and completely equipped to cut, thread and ream.
Specification：
Power Motor: 1100WPipe Threading Capacity: 1/2" to 2"
No. of Speeds: 1
No Load RPM: 36
Max. Chuck Capacity: 2"

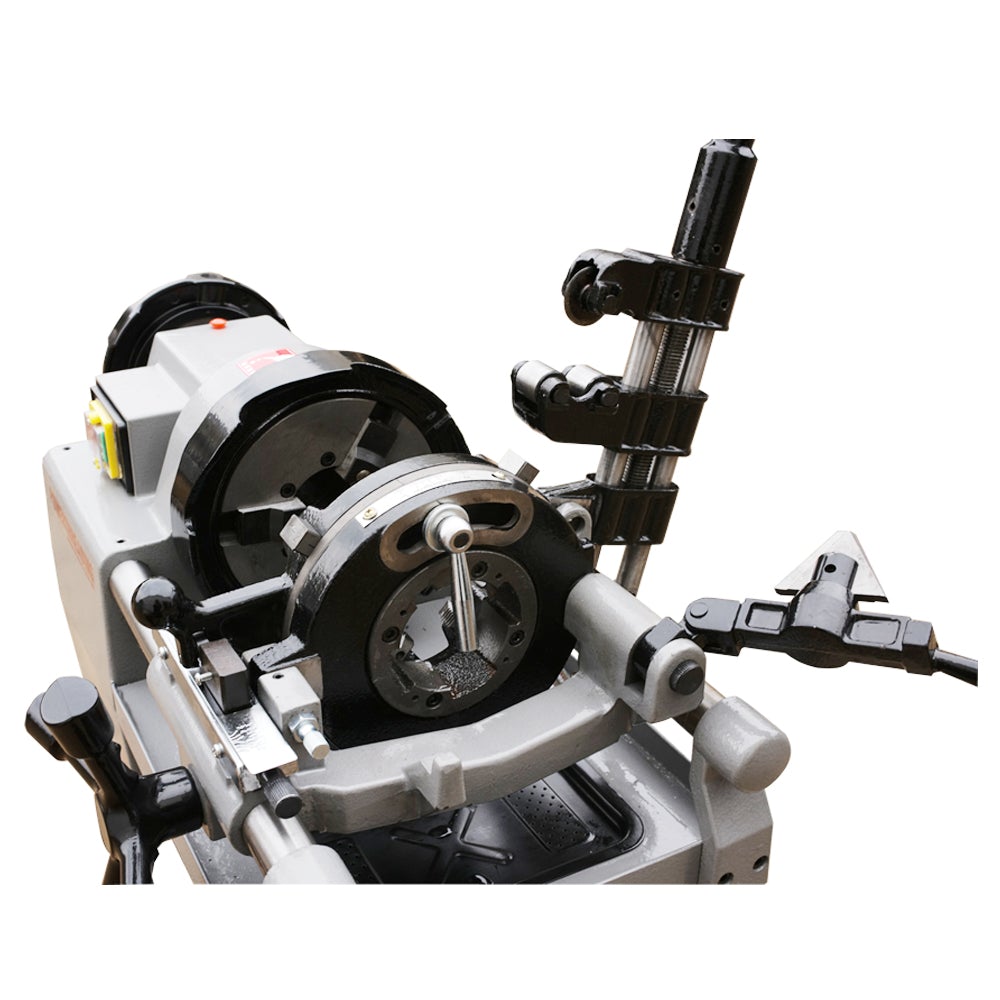

Die Head: 1/2" to 2" multi-functional and self-oiling die head
NPT Dies: 1/2"-3/4" and 1"-2" Right BSPT
Chuck Type: Hammer Chuck with Replaceable Rocker-Action Jaw Inserts
Pump: Constant Flow Gerotor
Reamers with a Shaft: Conical Reamer
Voltage: Single Phase 220V
Frequency: 50Hz
Amps: 9A
N.W.: 64 kg
G.W.: 76 kg
Packing Size: 700 x 480 x 590mm
Standard Equipment:
-1ps 2" Pipe threader
-1ps Multi-functional die head
-1ps Die sets: 1/2" to 3/4" and 1" to 2" Right BSPT

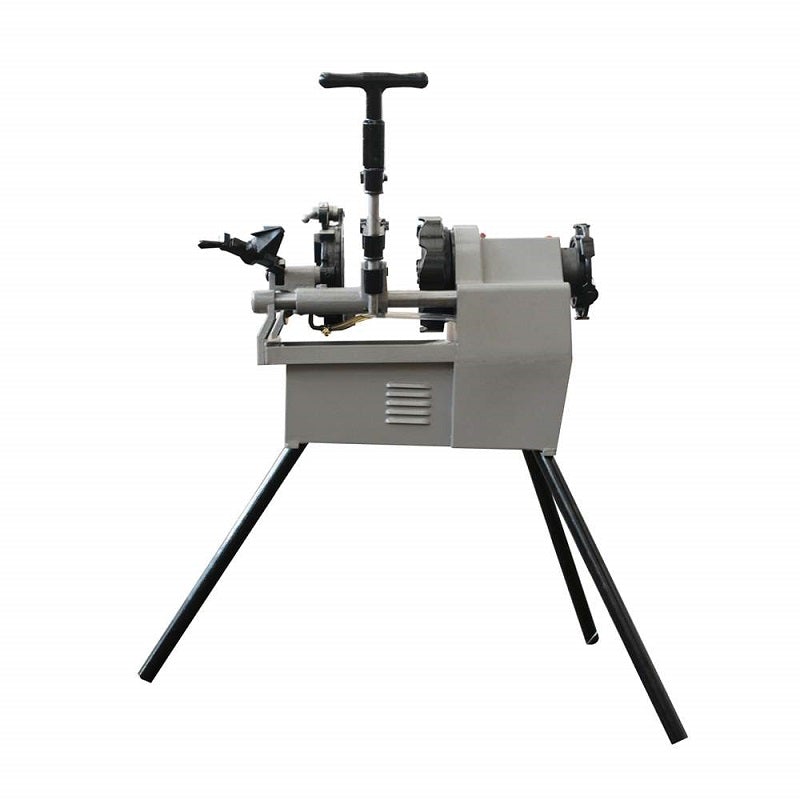

-3ps Legs
-1ps cutting oil canister
-1ps one set of mounting tools
